How High Should a Pig Water Nipple Be? The Complete Installation Guide

How High Should a Pig Water Nipple Be?

Quick Answer

Installing a pig water nipple at the correct height helps reduce water waste, encourages proper drinking behavior, and keeps pigs hydrated. As a general rule, mount the nipple approximately 2 inches above the pig’s shoulder height. As pigs grow, the nipple should be adjusted upward to maintain the proper drinking angle.

Why Water Nipple Height Matters

Many producers spend time selecting the right feed but don’t give much thought to where a water nipple is installed. However, the installation height directly affects how efficiently pigs drink.

When a nipple is mounted correctly, pigs naturally reach upward to activate it. This position allows them to drink comfortably while reducing unnecessary water waste.

If the nipple is installed too low, pigs often treat it like a toy, resulting in wet pens and wasted water. If it’s mounted too high, smaller pigs may struggle to reach it, leading to reduced water intake.

Proper placement helps:

• Encourage natural drinking behavior
• Reduce wasted water
• Keep bedding drier
• Improve pen cleanliness
• Support consistent feed intake

The Recommended Height for Pig Water Nipples

Rather than measuring from the floor using a fixed number, adjust the nipple based on the pigs using it.

Best practice:

Install the nipple approximately 2 inches above the shoulder height of the pigs.

Because pigs grow quickly, check the installation height regularly and make adjustments throughout the growing season.

General Guide

Pig Size	Recommended Position	Bite Size	Trojan Nipple
Piglets	About 2 inches above shoulder height	3/8”	Spiglet 07
Nursery pigs	About 2 inches above shoulder height	½””	Spiglet

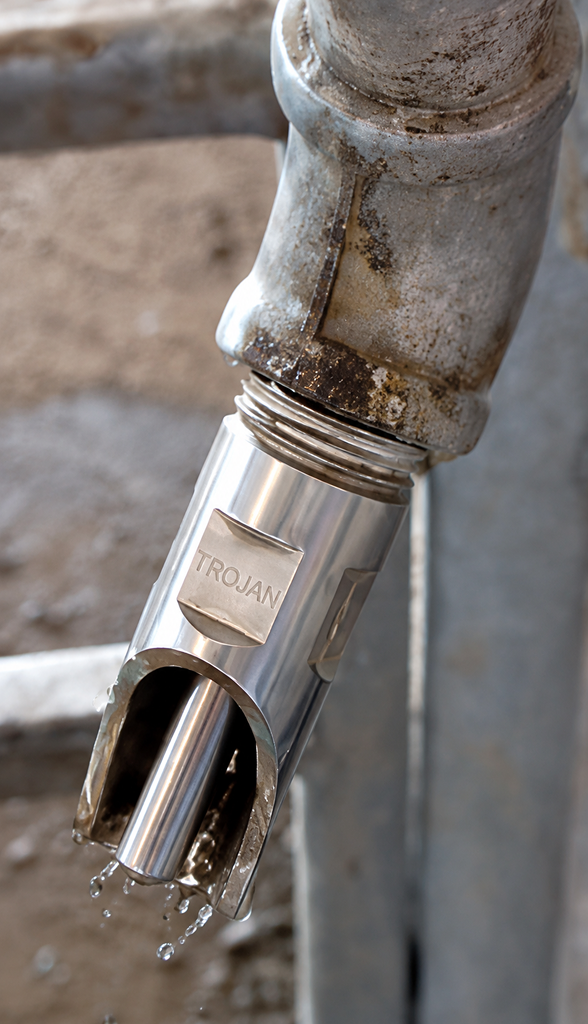

Grower pigs	About 2 inches above shoulder height	¾”	Cone Throat 75 Nipple, Model 75 Nipple, or Model 85 Oval Duct
Finishing pigs	About 2 inches above shoulder height	¾”	Cone Throat 75 Nipple, Model 75 Nipple, or Model 85 Oval Duct
Breeding stock	About 2 inches above shoulder height	¾” or larger	Same as above or Model 95 Oval Duct

This simple guideline works better than fixed measurements because pig breeds and growth rates vary.

Why Pigs Play With Water Nipples

One of the most common questions producers ask is:

“Why are my pigs wasting so much water?”

In many cases, the nipple isn’t defective.

It’s simply mounted too low.

When pigs can comfortably reach the nipple without lifting their heads, they often begin chewing or repeatedly activating it. This creates muddy pens, wastes water, and increases labor spent cleaning.

Raising the nipple slightly often solves the problem without replacing any equipment.

Water Pressure Matters Too

Even a perfectly installed water nipple won’t perform well if the water pressure isn’t correct.

For most pressure-operated pig drinking nipples, 20–40 PSI provides reliable performance.

If pressure is too high, pigs may spray or waste water.

If pressure is too low, water flow may be inadequate, discouraging pigs from drinking enough.

If you’re using a gravity-fed system, choose equipment specifically designed for low-pressure applications.

Common Installation Mistakes

Installing the nipple too low

This is the leading cause of excessive water waste.

Forgetting to adjust for growing pigs

What fits a 40-pound pig won’t fit a 250-pound market hog.

Using the wrong nipple for the water source

Pressure-operated nipples and gravity-flow nipples are designed for different systems. Using the wrong type can result in poor performance.

Ignoring leaks

A dripping nipple may indicate debris, mineral buildup, or worn internal components. Regular inspection helps prevent wasted water and unnecessary repairs. See steps 2-6 of our blog “How to Clean and Maintain a Livestock Pen Waterer (Complete Care Guide)” to clean the nipple.

Frequently Asked Questions

How high should a pig water nipple be?

Install it approximately 2 inches above the pig’s shoulder height and adjust it as the pig grows.

What happens if a pig’s water nipple is too low?

Pigs often play with the nipple, wasting water and creating muddy pens.

Can a water nipple be too high?

Yes. Smaller pigs may have difficulty reaching it, reducing water intake.

What water pressure is best for pig water nipples?

Most pressure-operated drinking nipples perform best between 20 and 40 PSI.

How often should I check the installation height?

Check every few weeks or anytime you notice rapid growth. Fast-growing market pigs may require several adjustments before market weight.

Proper Installation Leads to Better Performance

Installing a pig water nipple at the correct height is one of the simplest ways to improve water efficiency and animal comfort. Combined with proper water pressure and routine maintenance, correct installation helps reduce waste, keep pens cleaner, and ensure pigs always have access to fresh water.

As your pigs grow, take a few minutes to inspect and adjust your watering system. A small change in height can make a noticeable difference in water use and overall management.
